Solar Runway Light

The low-intensity airfield light DWSAN605S is a solar-powered runway edge light that complies with ICAO Annex 14 Volume I and FAA. This LED runway light is popular all over the world for being cost-effective, low-maintenance and easy to install. More than 100 airports in Brazil, Australia, the United States, Germany, Russia, China and other countries operate this solar runway light reliably.

The solar airfield light can be configured as a Runway Threshold/End Light with a 180° Red + 180° Green source, or as a Taxiway Edge Light with a 360° Blue source.

ICAO · FAA

Compliant

100+

Airfields

CE · RoHS

Certified

Tell Us Your Requirements

+1 (408) 610-8721 · ts@2wise.com.cn

Get a Quotation

Aerial view of a remote airstrip lined with solar runway lights

Application Scenarios

The DWSAN605S and its enhanced version, DWSAN605, are the most widely installed solar-powered runway lights at airports worldwide — see it on Alibaba.com.

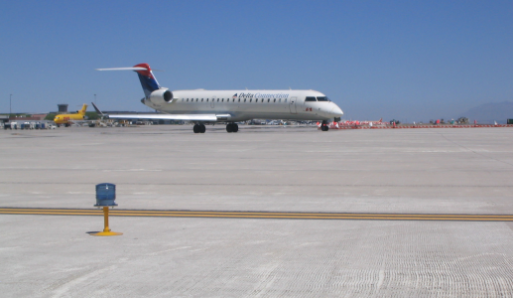

These solar runway lights have been successfully installed at private farm strips, remote airstrips, and small general aviation airfields.

Airstrips

Freijo Airport

Location: Acre State, Brazil
Runway: 1200m × 24m
Solution: Solar Runway Lighting System
Main products: DWSAN605S
Local partner: Free Fly LTD
Installation: 2020.06

General Aviation Airports

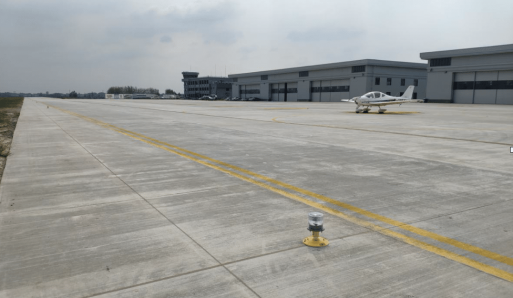

Shenmu General Airport

Location: Shaanxi Province, China
Runway: 1600m × 30m
Solution: Solar Airfield Lighting System
Main products: DWS801M, DWS801AM, DWSAN605S
Installation: 2023.10

Air Bases

Clark Air Base

Location: Clark Freeport Zone, Philippines
Main products: 170 DWSAN605S Runway Edge Lights
Local partner: Eagle Wings Enterprises
Installation: 2023.08

	DWSAN605S	DWSAN605
Light Output	360°, Steady-On
Intensity Adjustment	Low (40cd) / Medium (80cd) / High (150cd) for White
Colors	Runway Edge Light: White/Yellow or White/WhiteRunway Threshold/End Light: Red/GreenHelipad Perimeter Light: GreenTaxiway Edge Light: Blue
Minimum Autonomy at Low/Medium/High	150/80/50 Hours	300/150/100 Hours
Control	Wireless Remote Control	Wireless or Light-dependent Control
Lifespan of LEDs	Up to 100,000 Hours
Solar Panel	1.8Wp · Efficiency 20%	2.1Wp · Efficiency 21%
Replaceable Battery	Ni-MH, 5Ah/4.8V	Ni-MH, 7Ah/4.8V
Lens Material	Polycarbonate
CE	DACE260317016RL
Quality Assurance	ISO 9001:2015

ICAO, FAA, CE & RoHS

Compliant with ICAO, FAA, CE and RoHS.

Easy to Install

No high-voltage concerns, no trenching, no flight interruptions.

Highly Reliable

The all-in-one design ensures durability and reliability, and replacing the battery takes only a few minutes. The DWS-MCS monitors all operations of each light.

Trusted

Installed by the tens of thousands worldwide, providing uninterrupted, year-round operation at over 100 airfields and military bases.

DOUBLEWISE also offers the following auxiliary equipment and components to ensure the solar airfield light can be used more effectively.

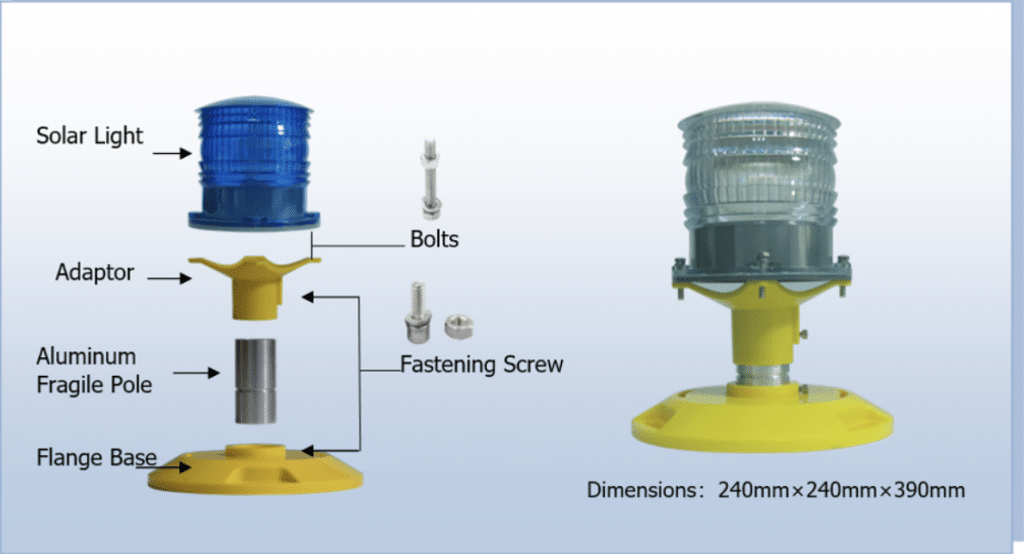

1. Frangible Coupling

There are two options for frangible couplings to choose from:

Solar runway light on a PC+ABS frangible coupling with adaptor and flange base — PC+ABS Alloy Frangible Coupling · 240mm × 240mm × 350mm

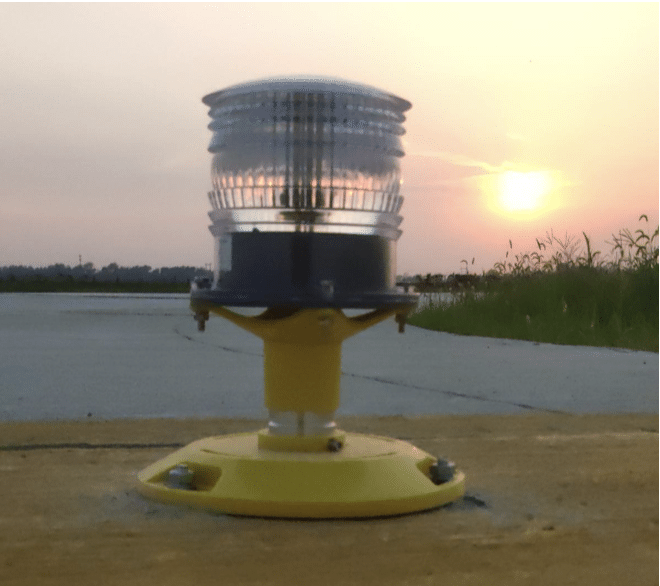

Solar runway light on an aluminum frangible coupling with adaptor and flange base — Aluminum Frangible Coupling · 240mm × 240mm × 280mm

2. Remote Controller

These solar lights can be turned on/off and have their intensity adjusted by a wireless controller. We provide two kinds of controllers: a Remote Controller (RC-2) with a range of 1 km and a Wireless Control Terminal (DWS-WCT) with a range of 3 km.

In addition, the DWSAN605 can be turned on/off by light-dependent control if necessary.

RC-2 wireless remote controller and DWS-WCT wireless control terminal — RC-2 Wireless Remote Controller (1 km) · DWS-WCT Wireless Control Terminal (3 km)
