Solar LED

Elevated Runway Guard Light

The Runway Guard Light is a pair of unidirectional, alternately-flashing yellow lights. It provides a distinctive warning to pilots or vehicle drivers that they are operating on taxiways and are about to enter an active runway.This solar elevated runway guard light(ERGL) complies with these standards: ICAO Annex 14, Volume I and FAA 150/5345-46E. The installation is easy, with no need for trenching and cabling.

Light Features

Provides unidirectional marking with 45~50 alternating yellow flashes per minute at the hold position of taxiway and runway intersections
The two ERGL light sources are surrounded by a black face plate and independent visors to reduce the amount of incident sunlight

Easy Installation and Operation

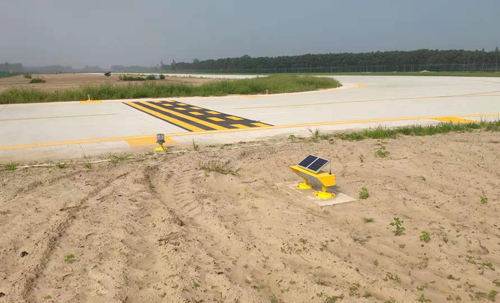

Typically installed in a pair, with one on either side of the taxiway holding position
 3-step intensity adjustment by a remote controller

High Quality

High-efficiency solar panel and long-lasting Lithium battery
The minimum autonomy or operational period without charging is more than 120Hrs
Manufactured by ISO 9001:2015

A608-2
Specifications
Typical Application
FAQ

Specifications

SPECIFICATIONS
MODELDWSA608
Light Output180°, Yellow, alternately flashing
Minimum AutonomyHigh-intensity:45hrs ;
Medium-intensity:70hrs ;Low-intensity: 120hrs
SourceLED
OperationLatitude Range55°S to 55°N
Lifespan of LEDSup to 50,000 Hours
On/Off Level60/100 Lux
Solar PanelsMaximum Power 7.2Wp；Efficiency 20%
BatteryLithium, replaceable；16Ah/7.2V
ConstructionLens MaterialPoly-carbonate
Mounting3 bolts
Weight9kg
Temperature Range-40℃ to +80℃
WaterproofIP65
Quality AssuranceISO9001:2015
PatentsChinese patent: 201320285073.0

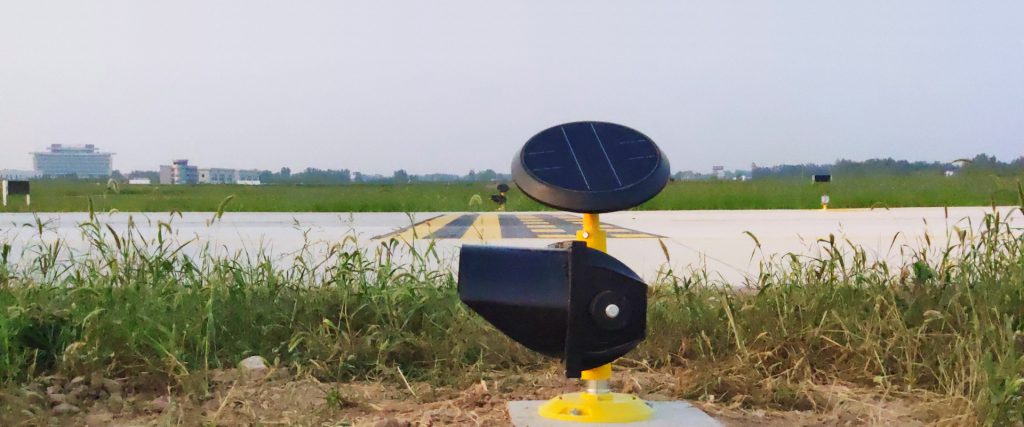

Solar Airfield lighting system
Frequently Asked Questions

Have a Question?

We are here to help you 7 days a week and respond within 24 hours. Plus, you can find most answers to your questions right on this page.

In general,the solar airport lighting is the better choice in the following cases:

     • Airfields that are not needed to fly at night every day;

     • Airstrips not easily connected the electrical cable or without electricity;

     • Airport renovation or temporary airports.

There are many benefits of Solar Airport Lighting System as follows:

• No High Voltage • No CCRS • No Base Cans

• No cabling • No Cable Conduits • No Isolation Transformers

• No Grounding    • No Vault   • No Bulbs    • No Glass Lens

Yes, these lights can be controlled to turn on/off and adjust the intensity by a wireless controller. We can provide two kind of controllers: a Remote Controller with the controlling range of 1Km and a Wireless Control Terminal with 3Km.
