Solar LED

7~10NM Marine Buoy Light

The solar marine buoy light DWS703 is a high-quality marine navigation lantern which visibility can be reached up to 10 nautical miles. The solar self-contained design makes this buoy light concision, reliability, durability and easy-operation. It can provide the 256 flashing rhythms that comply with IALA, Morse code,SOS code and self-defined codes.These patterns are selected by a remote controller and a LED indicator. If needed,the GPS can be equipped.

high configuration

256 IALA flashing patterns and its visibility up to 10NM
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V
Light Output : 360 ° or Any Sector

Automatic and Reliable

Turns on at dusk and off at dawn automatically
Completely self-contained and waterproof IP67
Minimum Autonomy ≥ 200 hrs of operating capacity from a full charge
Charge under nearly all weather conditions

High quality

Lens is polycarbonate with anti-UV which is produced by Bayer
Manufactured to ISO9001:2015 QAS

Specifications

Structure & Dimension

Typical Applications

FAQ

Specifications

SPECIFICATIONS
MODEL		DWS703
Source		Ultra-intensity LED
Visibility		7~10 Nautical Miles
Light Output	Horizontal Output	360° or any sector
Light Output	Flashing Patterns	256 IALA Rhythms
Peak Intensity	Color
	White	1500cd
	Red	1400cd
	Green	1500cd
Minimum Autonomy		200hrs
Operation	Latitude Range	55°S to 55°N
	On/Off Level	60/100 Lux
	Lifespan of LEDS	Up to 30,000 Hours
Solar Panels		Mono-crystalline 7.2Wp Efficiency 20%
Battery		Lithium, replaceable 16Ah/7.2V
Construction	Lens Material	Polycarbonate
	Mounting	4 bolts
	Weight	4kg
Temperature Range		-40℃ to +80℃
Waterproof		IP67
Quality Assurance		ISO9001:2015
Chinese Patents		201320285073.0
GPS		Optional

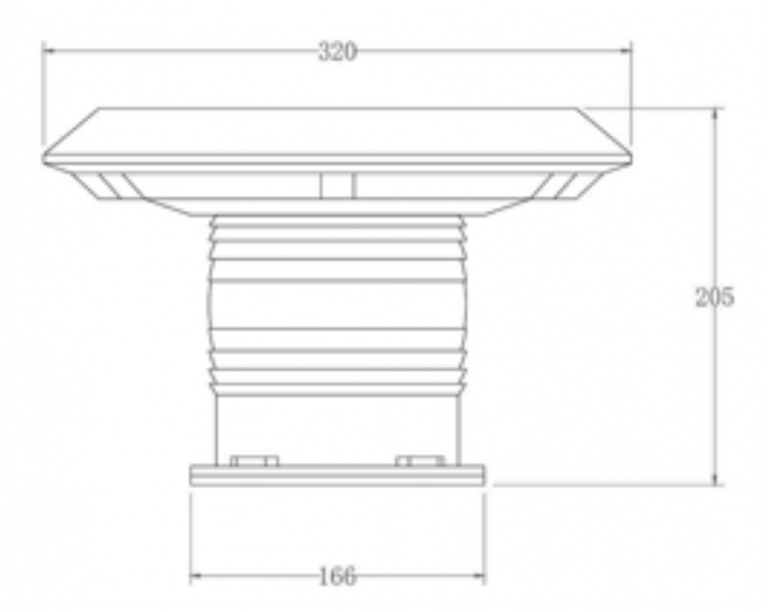

Structure & Dimension

Typical Applications

Lateral Marks

Cardinal Marks

Research buoys

Special Buoy

Oil & Gas Platforms

Offshore Wind Farms

Boat and barge Terminals

Breakwaters and all types of marine infrastructure

Channel and Canal markers

Harbor, Port and Marina entrances

Private aids to navigation

Public piers, Docks and Marine walkways

Floating Hose Markers

Safe Water Buoys

Isolated Danger Marks

Small Safety Hazard Buoys

Frequently Asked Questions

Have a Question?

We are here to help you 7 days a week and respond within 24 hours. Plus, you can find most answers to your questions right on this page.

What is Doublewise Marine Light Collection?

The Doublewise team is dedicated to the design and manufacture of marine aids to navigation (AtoN) lighting equipment including Buoy or Lighthouse Lighting, Port & Harbour Entry Lighting systems ,Channel and canal markers, Offshore oil & gas infrastructure, Research buoys and Monitoring Control systems since 2001.

Doublewise® Solar Led marine lanterns can provide 360° visual coverage from 2NM up to 13NM and guide vessels safely into ports and harbors around the world. These solar marine AtoN lights can be installed on buoys and require low maintenance.
