Solar LED

4~5NM Navigation Mark Light

The solar powered navigation mark light DWS503 has specially been designed as the solar beacon light for 5 types of marks in IALA Maritime Buoyage System because of its solar self-contained, reliability and durability. This solar led marine beacon can provide 16 flashing Rhythms that comply with IALA, Morse code, SOS code and self-defined codes for every color. These patterns are selected by a touch switch and 4 indicators and can be extended to 256 IALA Rhythms.

high configuration

16 Flashing IALA patterns and its visibility 4~5NM
Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V
Available in red, amber, white and green

Automatic and Reliable

Turns on at dusk and off at dawn automatically
Completely self-contained and waterproof IP67
Charge under nearly all weather conditions and up to 200 hours of operating capacity from a full charge

High quality

Lens is polycarbonate with anti-UV which is produced by Bayer
Manufactured to ISO9001:2015 QAS

Specifications

Structure & Dimension

Typical Applications

FAQ

Specifications

SPECIFICATIONS
MODEL		DWS503
Visibility		4~5 Nautical Miles
Light Output	Horizontal Output	360°
Light Output	Flashing Patterns	16 IALA Flashing Rhythms, Up to 256 IALA Rhythms
Average Intensity	Color
	White	86cd
	Red	80cd
	Amber	77cd
	Green	83cd
Minimum Autonomy		200hrs
Operation	Latitude Range	55°S to 55°N
	On/Off Level	60/100 Lux
	Lifespan of LEDS	Up to 100,000 Hours
Solar Panels		Mono-crystalline 2.7Wp Efficiency 20%
Battery		Ni-Mh, replaceable 4.8Ah/4.8V
Construction	Lens Material	Anti-UV Polycarbonate
	Mounting	4 bolts, Magnetic base or FlangeBase
	Weight	1.1kg
Temperature Range		-40℃ to +70℃
Waterproof		IP67 Completely Sealed
Quality Assurance		ISO9001:2015
Chinese Patents		ZL201430444455.3
Colored Lens Option		Red, Green, Amber, White
Intensity Adjustment or GPS		Optional

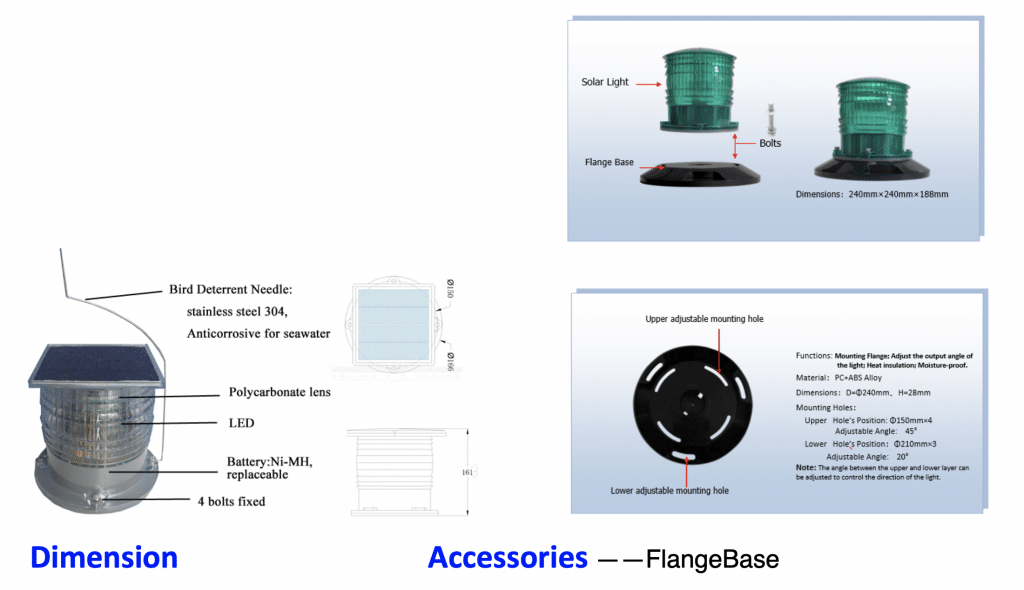

Structure & Dimension

Typical Applications

Lateral Marks

Cardinal Marks

Research buoys

Special Buoy

Oil & Gas Platforms

Offshore Wind Farms

Boat and barge Terminals

Breakwaters and all types of marine infrastructure

Channel and Canal markers

Harbor, Port and Marina entrances

Private aids to navigation

Public piers, Docks and Marine walkways

Floating Hose Markers

Safe Water Buoys

Isolated Danger Marks

Small Safety Hazard Buoys

Frequently Asked Questions

Have a Question?

We are here to help you 7 days a week and respond within 24 hours. Plus, you can find most answers to your questions right on this page.

How to choose the flashing pattern?

Please see the selecting switch in the bottom of this light and the four indicators at the side of the light,as shown below.

For each color, there are lists of the 16 flashing patterns as follows.In general,the 16 flashing codes have included all of IALA recommendation codes.For example,the IALA recommendation codes for RED or GREEN only has 9 codes.We can provide up to 256 codes,but the 16 codes is enough to use for most of users.
